Features
- Commanding up to 255 devices (Incl. PTZ Cameras)
- LCD Display (20×4 Character, Edit Company Logo)
- Multiple Protocol Supported in Each Channel
- Easily Operate function (Preset, Pattern, Swing, Group)
- RS-485 Communications (Remote control up to 1.2Km)
- Support to use up to 4 Slave Controller
- Support to Password setup of the administrator
- Firmware Upgrade using RS-232(PC)
- Supports USB Mouse Function
Specification

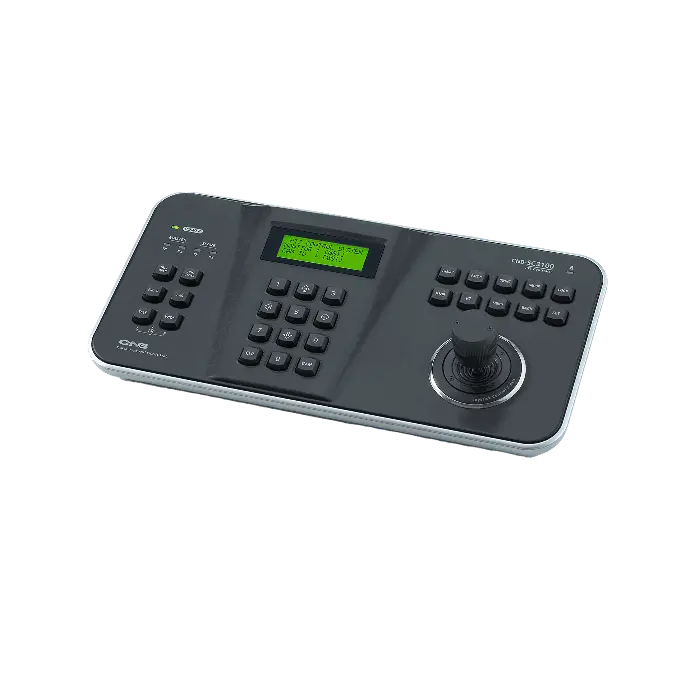

| Model | SC3100 |
| Communication Type | Pan/Tilt interface: RS-485 (Remote control up to 1.2km) |
| DVR Interface | RS-485, USB |
| USB | USB Mouse Function support |
| Protocol | Pelco D, Pelco P, Samsung Elec., Panasonic |
| LCD Display | 20 x 4 Character LCD |
| PTZ Control | Joystick (3 Axis Twist Zoom) |
| Sub Keyboard | Max. 4 Devices (Including Master Keyboard) |
| RS-485 Specification | Type : Asynchronous Serial, 1 Start Bit, No Parity, 1 Stop Bit |
| Transmission Type | Half Duplex |
| Data Rate | 2400 ~ 38400 bps |
| RS-232 Specification | D-SUB 9P, Firmware Upgrade |
| Operation Voltage | 12VDC / 9V Battery / USB(PC) |
| Power Consumption | 120~150mA |
| Operating Temperature | -10℃ ~ 50℃ / 60% |
| Dimensions | 400 (W) X 200 (H) X 99.97 (D)mm |
| Weight | About 1.24kg (Excluding Adaptor) |
