Features
- 1/3” Progressive scan CMOS Sensor
- Dual-Codec (H.264/MJPEG)
- Progressive scan megapixel (2M CMOS)
- Multi profile streaming
- (5 different streams per Resolution, Frame, Rate, Codec)
- Digital PTZ, video crop
- Analog video output (CVBS)
- Built-in standard PoE
- Two-way audio communication
- Dark Hunter + Super IR LED
- 3-Axis lens mount
- Compact design & Easy installation
- Vandal proof, Weather proof (IP66)
Specification

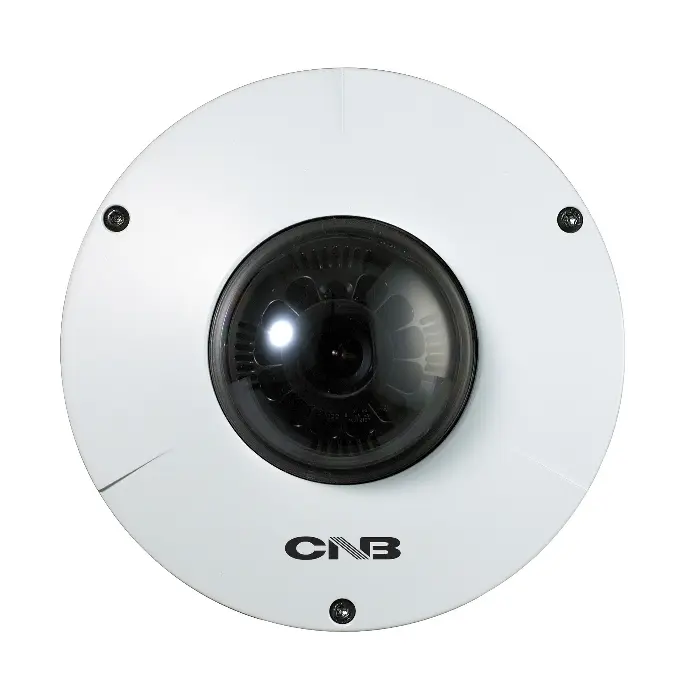

| Model | NV21-0MHR |
| Camera | |
Image Sensor | Progressive scan 1/3 inch CMOS 2M pixels |
Full resolution | 1,920 x 1,080 pixels (Full HD) |
Sync. System | Internal |
Lens | Optional 2.9, 3.6, 6mm Fixed |
Day & Night | AUTO, DAY ,NIGHT |
Sensitivity | Dark Hunter Max - 0.0005 Lux / IR LED on : 0 Lux |
Back Light Compensation | ON / OFF |
White Balance | ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH |
Exposure | ESC |
WDR | ON / OFF |
3D-DNR | 0~20 |
Dark Hunter | AUTO ON (Max.X32) / OFF |
Privacy Mask | ON / OFF (10 Programmable Zone) |
Motion Detection | ON / OFF (4 Programmable Zone) |
Digital Zoom | X1 ~ X12 |
Mirror | H/ V/ Rotate |
DEFOG | ON / OFF |
OSD / Language | BUILT IN Internally ( English...) |
Super IR LED | 2EA |
| Video | |
Compression method | Simultaneous Dual Codec (H.264 / MJPEG) |
Resolution | 1,920 x 1,080@30fps |
Multi-Profile Streaming | * 5 simultaneous video profiles * Select the codec type, resolution and frame rates for each profile. |
Intelligent Bit-rate Control | Hybrid Bit Rate control (VBR+CBR) |
PTZ | Digital PTZ & Video crop |
Image Setting | Text overlay, Privacy mask, De-interlace filter |
Motion detection | 3 regions |
| Audio | |
Mono Upstream | 32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in |
Mono Downstream | 64Kbps 16bit μ-law PCM ~ Line-out |
| Network | |
Network Protocol | IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS |
Dynamic IP | Supported |
Security | - User ID & Password protection, IP address filtering, - Digest Authentication, User Access Log |
Streaming method | -RTSP streaming with proprietary format for control informations - Standard RTSP streaming - HTTP streaming - Onvif Profile-S |
| External Terminals | |
LAN | 10/100BaseT LAN (auto MDIX) |
Analog output | 1 channel D1 CVBS output of the encoding video |
Alarm input / output | Alarm I/O (1 Sensor input & 1 Relay output) |
Factory Reset | Supported |
Other | MIC, Line in / Line out / DC 12V in |
| Installation | |
Standard PoE | IEEE802.3af Supported |
| System Integration | |
Intelligent Video | Motion Detection |
Alarm Triggers | Motion Detection + Sensor Input + Audio Detection |
Alarm Events | Video file upload(FTP), Still image(Email), Relay output |
Alarm Buffer (Audio/Video) | configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec) |
| Client Software | |
NVR2 | 64ch (free of charge) |
Smart App. | Android, iOS (free of charge) |
| Operating Environment, Power, Dimensions | |
Operating Temperature | -10℃ ~ 50℃ |
Operating Humidity | 8 ~ 80% RH |
Power | DC 12V, 0.6A |
Dimensions | Ø122mm(4.8”) x 55mm(2.1”) |
Weight | 400g (0.88lbs) |
Casing | AL, PC, IP66 |
Approvals | FCC, CE, KCC |
Package information | IP camera, CD (User’s guide, Software…) |
| Optional Items | |
Local storage | Micro SD card |
Adapter | DC 12V, 1.5A |
