NV21-0MH

https://cnbcctv.odoo.com/web/image/product.template/11/image_1920?unique=109cf0f

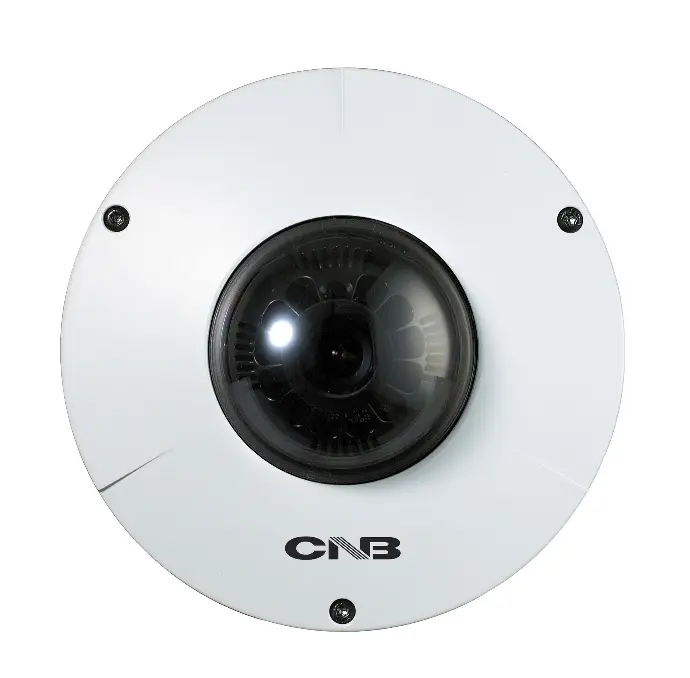

NV21-0MH Full HD 2.0 Megapixel IP Pancake Camera

0.00 0.0 USD 0.00

0.00

This combination does not exist.

Features

  • 1/3” Progressive scan CMOS Sensor
  • Dual-Codec (H.264/MJPEG)
  • Progressive scan megapixel (2M CMOS)
  • Multi profile streaming
  • (5 different streams per Resolution, Frame, Rate, Codec)
  • Digital PTZ, video crop
  • Analog video output (CVBS)
  • Built-in standard PoE
  • Two-way audio communication
  • 3-Axis Lens mount
  • Compact design & Easy installation
  • Vandal proof, Weather proof (IP66)


Specification

ModelNV21-0MH
Camera

Image Sensor

Progressive scan 1/3 inch CMOS 2M pixels

Full resolution

1,920 x 1,080 pixels (Full HD)

Sync. System

Internal

Lens

Optional 2.9, 3.6, 6mm Fixed

Day & Night

AUTO, DAY ,NIGHT

Sensitivity

Dark Hunter Max - 0.0005 Lux

Back Light Compensation

ON / OFF

White Balance

ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH

Exposure

ESC

WDR

ON / OFF

3D-DNR

0~20

Dark Hunter

AUTO ON (Max.X32) / OFF

Privacy Mask

ON / OFF (10 Programmable Zone)

Motion Detection

ON / OFF (4 Programmable Zone)

Digital Zoom

X1 ~ X12

Mirror

H/ V/ Rotate

DEFOG

ON / OFF

OSD / Language

BUILT IN Internally ( English...)
Video

Compression method

Simultaneous Dual Codec (H.264 / MJPEG)

Resolution

1,920 x 1,080@30fps

Multi-Profile Streaming

* 5 simultaneous video profiles
* Select the codec type, resolution and frame rates for each profile.

Intelligent Bit-rate Control

Hybrid Bit Rate control (VBR+CBR)

PTZ

Digital PTZ & Video crop

Image Setting

Text overlay, Privacy mask, De-interlace filter

Motion detection

3 regions
Audio

Mono Upstream

32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in

Mono Downstream

64Kbps 16bit μ-law PCM ~ Line-out
Network

Network Protocol

IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS

Dynamic IP

Supported

Security

- User ID & Password protection, IP address filtering,
- Digest Authentication, User Access Log

Streaming method

-RTSP streaming with proprietary format for control informations
- Standard RTSP streaming
- HTTP streaming
- Onvif Profile-S
External Terminals

LAN

10/100BaseT LAN (auto MDIX)

Analog output

1 channel D1 CVBS output of the encoding video

Alarm input / output

Alarm I/O (1 Sensor input & 1 Relay output)

Factory Reset

Supported

Other

MIC, Line in / Line out / DC 12V in
Installation

Standard PoE

IEEE802.3af Supported
System Integration

Intelligent Video

Motion Detection

Alarm Triggers

Intelligent Video + Sensor Input + Audio Detection

Alarm Events

Video file upload(FTP), Still image(Email), Relay output

Alarm Buffer (Audio/Video)

configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)
Client Software

NVR2

64ch (free of charge)

Smart App.

Android, iOS (free of charge)
Operating Environment, Power, Dimensions

Operating Temperature

-10℃ ~ 50℃

Operating Humidity

8 ~ 80% RH

Power

DC 12V, 0.6A

Dimensions

Ø122mm(4.8”) x 55mm(2.1”)

Weight

400g (0.88lbs)

Casing

AL, PC, IP66

Approvals

FCC, CE, KCC

Package information

IP camera, CD (User’s guide, Software…)
Optional Items

Local storage

Micro SD card

Adapter

DC 12V, 1.5A
