Features
- Max. 5MP(2592x1944) up to 10FPS
- Focal Length: 0.98mm (Short axis) 1.12mm (Long axis)
- Built-in Panomorph Lens (Immervision360˚)
- 1/2.5” Progressive CMOS Sensor
- Super Wide Angle of 182˚x 360˚FOV
- View Modes: Single PTZ View, 4 PTZ View in 1 Window, Perimeter View in One Window(2x180˚)
- 5 Simultaneous Multi-Profile Video Streams
- Support SD card
- Analog Video Output(CVBS) & Alarm I/O
- Onvif Profile S and 2.2x, Two-way Audio (ADPCM)
- Ethernet 10/100 Base-T (PoE)
Specification

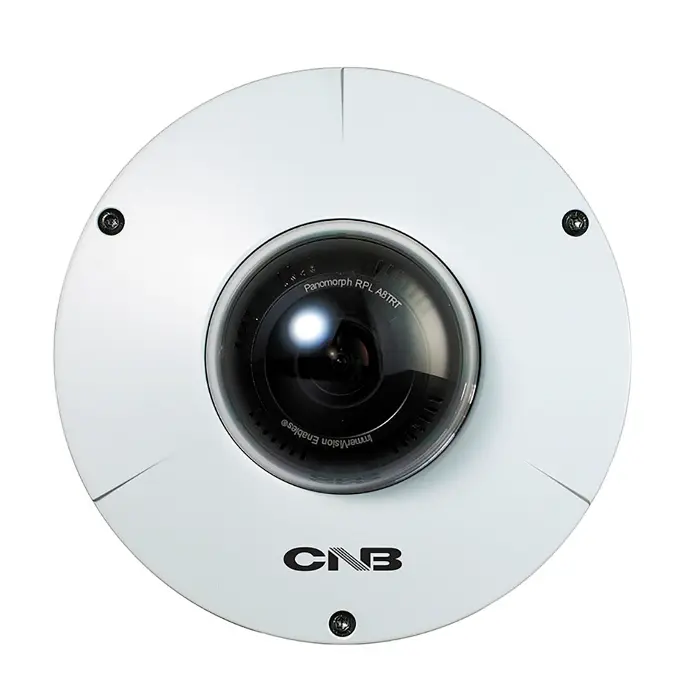

Model | MPC1070PN |
| Camera | |
Image Sensor | 1/2.5” Progressive CMOS Sensor |
Scaning System | 16:9 Progressive |
Sync. System | Internal |
Effective Pixels Number | 2,592 (H) x 1,994 (V) 5.0 Mega |
Video Output Level | Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite) |
Lens | Built-in Panomorph Lens (Immervision 360°), 0.98mm : Short axis / 1.12mm : Long axis |
Min. Illumination | 0.12Lux (Color) |
White Balance | Auto |
| Video | |
Compression | H.264 / MJPEG |
Resolution | 2,592 x 1,944 @ 10fps |
Multi-Profile Streaming | * 5 Simultaneous video profiles |
Intelligent Bit-rate Control | Hybrid Bit rate control (VBR+CBR) |
PTZ | Digital PTZ & Video Crop |
Image setting | Text overlay, Privacy mask, De-interlace filter |
Motion detection | 3 regions |
| Audio | |
Mono Upstream | 32Kbps G.726 ADPCM (Line-in / Mic-in) |
Mono Downstream | 128Kbps 16bit Linear PCM, Line-out(1.0Vp-p) |
| Network | |
Protocol | IPv4/v6, TCP / IP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnPP, NTP, DNS, DynDNS, Socks |
Supported DDNS | Supported (CNB DDNS) |
Security | - User ID & Password protection, IP address filtering, |
| External Terminals | |
LAN | 10/100 Base-T LAN (auto MDIX) |
Analog Output | 1 Channel D1 CVBS Output of the encoding video |
Alarm | Alarm I/O (1 Sensor input & 1 Relay output) |
Other | Mic, Line in / Line Out / 12VDC |
| System Integration | |
Intelligent Video | Motion Detection |
Alarm Triggers | Sensor Input |
Alarm Events | Video file upload(FTP), Still image(Email), PTZ preset, Relay output |
Video Buffer | Pre & Post alarm |
| Applications | |
Browser | Internet Explorer 8 or Higher |
Monitoring Application | XNET NVR 2, and Utility (IP-Installer) |
| Maintenance | |
System Upgrade | Firmware upgrade over HTTP |
| Mechanical | |
Standard PoE | Standard IEEE 802.3af supported |
Power | DC 12V Max. 1A |
Dimensions | 122(W) x 55(H) mm |
Operating Temp. / Humidity | -10℃ ~ 50℃ / 8~80% RH |
Weight | Approx. 400g |
