Features

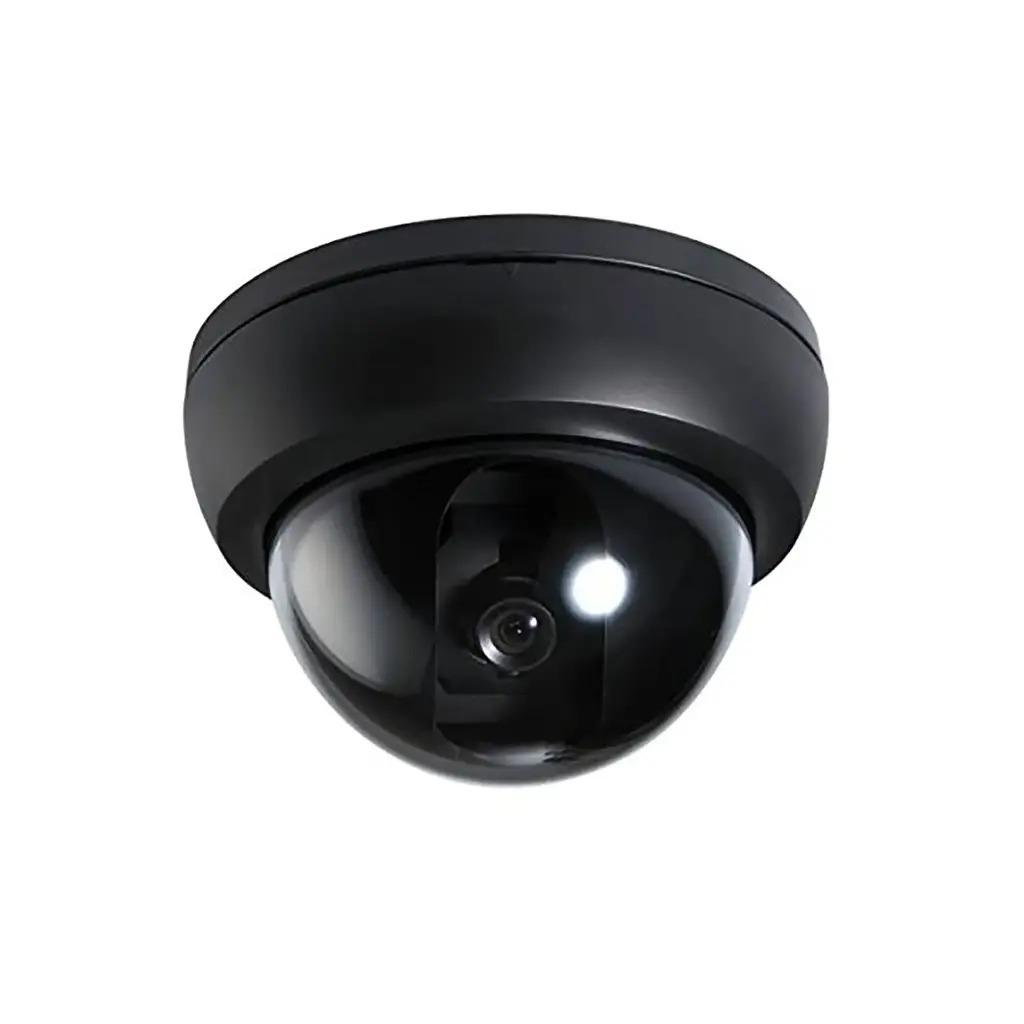

- Indoor Analog Dome Camera (Black)
- 1/3-inch HPI Sensor (High Pixels Image Sensor)
- 600 TV Lines
- 3.6mm Fixed Lens
- Min 0.5 Lux
- 3-AXIS
- Dome Size (Ø): 85mm
- 12VDC
- Power Consumption 40mA/0.5W (Max)
- OEM Packaging
Specification
|
Model |
D192-0S |
|
Image Sensor |
1/3-inch HPIS (High Pixels Image Sensor) |
|
Effective Pixels Array |
756(H) x 504(V) |
|
Video Output |
CVBS: 1.0Vp-p Signal (75 Ohms, Composite) |
|
Sync. System |
Internal Sync. |
|
Lens |
Fixed Lens (f=3.6mm) |
|
Focus |
Manual |
|
S/N Ratio |
47.1dB Min. (AGC OFF) |
|
Horizontal Resolution |
600 TV lines |
|
Min. Illumination |
0.05 Lux |
|
White Balance |
Auto |
|
AGC |
Auto |
|
Day & Night |
Color |
|
Input / Output Connector |
Power (Red Jack), Video (Yellow Jack) |
|
Supply Voltage |
12VDC (±20%) |
|
Power Consumption |
40mA/ 0.5W (Max.) |
|
Operating Temperature/ Humidity |
-10℃ to +50℃ / 30% ~ 80% RH |
|
Storage Temperature/ Humidity |
-20℃ to +55℃ / 20% ~ 90% RH |
|
Dome Size (Ø) |
85mm |
